Consider this complex query example:
"hello world" @title "example program"~5 @body python -(php|perl) @* codeThe full meaning of this search is:
- Locate the words 'hello' and 'world' adjacently in any field within a document;
- Additionally, the same document must also contain the words 'example' and 'program' in the title field, with up to, but not including, 5 words between them; (For instance, "example PHP program" would match, but "example script to introduce outside data into the correct context for your program" would not, as there are 5 or more words between the two terms)
- Furthermore, the same document must have the word 'python' in the body field, while excluding 'php' or 'perl';
- Finally, the same document must include the word 'code' in any field.
The OR operator takes precedence over AND, so "looking for cat | dog | mouse" means "looking for (cat | dog | mouse)" rather than "(looking for cat) | dog | mouse".
To comprehend how a query will be executed, Manticore Search provides query profiling tools to examine the query tree generated by a query expression.
To enable full-text query profiling with an SQL statement, you must activate it before executing the desired query:
SET profiling =1;
SELECT * FROM test WHERE MATCH('@title abc* @body hey');To view the query tree, execute the SHOW PLAN command immediately after running the query:
SHOW PLAN;This command will return the structure of the executed query. Keep in mind that the 3 statements - SET profiling, the query, and SHOW - must be executed within the same session.
When using the HTTP JSON protocol we can just enable "profile":true to get in response the full-text query tree structure.
{
"table":"test",
"profile":true,
"query":
{
"match_phrase": { "_all" : "had grown quite" }
}
}The response will include a profile object containing a query member.
The query property holds the transformed full-text query tree. Each node consists of:
type: node type, which can be AND, OR, PHRASE, KEYWORD, etc.description: query subtree for this node represented as a string (inSHOW PLANformat)children: any child nodes, if presentmax_field_pos: maximum position within a field
A keyword node will additionally include:
word: the transformed keyword.querypos: position of this keyword in the query.excluded: keyword excluded from the query.expanded: keyword added by prefix expansion.field_start: keyword must appear at the beginning of the field.field_end: keyword must appear at the end of the field.boost: the keyword's IDF will be multiplied by this value.
- SQL
- JSON
- PHP
- Python
- javascript
- Java
- C#
- TypeScript
- Go
SET profiling=1;
SELECT * FROM test WHERE MATCH('@title abc* @body hey');
SHOW PLAN \GPOST /search
{
"table": "forum",
"query": {"query_string": "i me"},
"_source": { "excludes":["*"] },
"limit": 1,
"profile":true
}$result = $index->search('i me')->setSource(['excludes'=>['*']])->setLimit(1)->profile()->get();
print_r($result->getProfile());searchApi.search({"table":"forum","query":{"query_string":"i me"},"_source":{"excludes":["*"]},"limit":1,"profile":True})res = await searchApi.search({"table":"forum","query":{"query_string":"i me"},"_source":{"excludes":["*"]},"limit":1,"profile":true});
query = new HashMap<String,Object>();
query.put("query_string","i me");
searchRequest = new SearchRequest();
searchRequest.setIndex("forum");
searchRequest.setQuery(query);
searchRequest.setProfile(true);
searchRequest.setLimit(1);
searchRequest.setSort(new ArrayList<String>(){{
add("*");
}});
searchResponse = searchApi.search(searchRequest);object query = new { query_string="i me" };
var searchRequest = new SearchRequest("forum", query);
searchRequest.Profile = true;
searchRequest.Limit = 1;
searchRequest.Sort = new List<Object> { "*" };
var searchResponse = searchApi.Search(searchRequest);res = await searchApi.search({
index: 'test',
query: { query_string: 'Text' },
_source: { excludes: ['*'] },
limit: 1,
profile: true
});searchRequest := manticoresearch.NewSearchRequest("test")
query := map[string]interface{} {"query_string": "Text"}
source := map[string]interface{} { "excludes": []string {"*"} }
searchRequest.SetQuery(query)
searchRequest.SetSource(source)
searchReq.SetLimit(1)
searchReq.SetProfile(true)
res, _, _ := apiClient.SearchAPI.Search(context.Background()).SearchRequest(*searchRequest).Execute()*************************** 1\. row ***************************
Variable: transformed_tree
Value: AND(
OR(fields=(title), KEYWORD(abcx, querypos=1, expanded), KEYWORD(abcm, querypos=1, expanded)),
AND(fields=(body), KEYWORD(hey, querypos=2)))
1 row in set (0.00 sec){
"took":1503,
"timed_out":false,
"hits":
{
"total":406301,
"hits":
[
{
"_id": 406443,
"_score":3493,
"_source":{}
}
]
},
"profile":
{
"query":
{
"type":"AND",
"description":"AND( AND(KEYWORD(i, querypos=1)), AND(KEYWORD(me, querypos=2)))",
"children":
[
{
"type":"AND",
"description":"AND(KEYWORD(i, querypos=1))",
"children":
[
{
"type":"KEYWORD",
"word":"i",
"querypos":1
}
]
},
{
"type":"AND",
"description":"AND(KEYWORD(me, querypos=2))",
"children":
[
{
"type":"KEYWORD",
"word":"me",
"querypos":2
}
]
}
]
}
}
}Array
(
[query] => Array
(
[type] => AND
[description] => AND( AND(KEYWORD(i, querypos=1)), AND(KEYWORD(me, querypos=2)))
[children] => Array
(
[0] => Array
(
[type] => AND
[description] => AND(KEYWORD(i, querypos=1))
[children] => Array
(
[0] => Array
(
[type] => KEYWORD
[word] => i
[querypos] => 1
)
)
)
[1] => Array
(
[type] => AND
[description] => AND(KEYWORD(me, querypos=2))
[children] => Array
(
[0] => Array
(
[type] => KEYWORD
[word] => me
[querypos] => 2
)
)
)
)
)
){'hits': {'hits': [{u'_id': u'100', u'_score': 2500, u'_source': {}}],
'total': 1},
'profile': {u'query': {u'children': [{u'children': [{u'querypos': 1,
u'type': u'KEYWORD',
u'word': u'i'}],
u'description': u'AND(KEYWORD(i, querypos=1))',
u'type': u'AND'},
{u'children': [{u'querypos': 2,
u'type': u'KEYWORD',
u'word': u'me'}],
u'description': u'AND(KEYWORD(me, querypos=2))',
u'type': u'AND'}],
u'description': u'AND( AND(KEYWORD(i, querypos=1)), AND(KEYWORD(me, querypos=2)))',
u'type': u'AND'}},
'timed_out': False,
'took': 0}
{"hits": {"hits": [{"_id": 100, "_score": 2500, "_source": {}}],
"total": 1},
"profile": {"query": {"children": [{"children": [{"querypos": 1,
"type": "KEYWORD",
"word": "i"}],
"description": "AND(KEYWORD(i, querypos=1))",
"type": "AND"},
{"children": [{"querypos": 2,
"type": "KEYWORD",
"word": "me"}],
"description": "AND(KEYWORD(me, querypos=2))",
"type": "AND"}],
"description": "AND( AND(KEYWORD(i, querypos=1)), AND(KEYWORD(me, querypos=2)))",
"type": "AND"}},
"timed_out": False,
"took": 0}
class SearchResponse {
took: 18
timedOut: false
hits: class SearchResponseHits {
total: 1
hits: [{_id=100, _score=2500, _source={}}]
aggregations: null
}
profile: {query={type=AND, description=AND( AND(KEYWORD(i, querypos=1)), AND(KEYWORD(me, querypos=2))), children=[{type=AND, description=AND(KEYWORD(i, querypos=1)), children=[{type=KEYWORD, word=i, querypos=1}]}, {type=AND, description=AND(KEYWORD(me, querypos=2)), children=[{type=KEYWORD, word=me, querypos=2}]}]}}
}class SearchResponse {
took: 18
timedOut: false
hits: class SearchResponseHits {
total: 1
hits: [{_id=100, _score=2500, _source={}}]
aggregations: null
}
profile: {query={type=AND, description=AND( AND(KEYWORD(i, querypos=1)), AND(KEYWORD(me, querypos=2))), children=[{type=AND, description=AND(KEYWORD(i, querypos=1)), children=[{type=KEYWORD, word=i, querypos=1}]}, {type=AND, description=AND(KEYWORD(me, querypos=2)), children=[{type=KEYWORD, word=me, querypos=2}]}]}}
}{
"hits":
{
"hits":
[{
"_id": 1,
"_score": 1480,
"_source": {}
}],
"total": 1
},
"profile":
{
"query": {
"children":
[{
"children":
[{
"querypos": 1,
"type": "KEYWORD",
"word": "i"
}],
"description": "AND(KEYWORD(i, querypos=1))",
"type": "AND"
},
{
"children":
[{
"querypos": 2,
"type": "KEYWORD",
"word": "me"
}],
"description": "AND(KEYWORD(me, querypos=2))",
"type": "AND"
}],
"description": "AND( AND(KEYWORD(i, querypos=1)), AND(KEYWORD(me, querypos=2)))",
"type": "AND"
}
},
"timed_out": False,
"took": 0
}{
"hits":
{
"hits":
[{
"_id": 1,
"_score": 1480,
"_source": {}
}],
"total": 1
},
"profile":
{
"query": {
"children":
[{
"children":
[{
"querypos": 1,
"type": "KEYWORD",
"word": "i"
}],
"description": "AND(KEYWORD(i, querypos=1))",
"type": "AND"
},
{
"children":
[{
"querypos": 2,
"type": "KEYWORD",
"word": "me"
}],
"description": "AND(KEYWORD(me, querypos=2))",
"type": "AND"
}],
"description": "AND( AND(KEYWORD(i, querypos=1)), AND(KEYWORD(me, querypos=2)))",
"type": "AND"
}
},
"timed_out": False,
"took": 0
}In some instances, the evaluated query tree may significantly differ from the original one due to expansions and other transformations.
- SQL
- JSON
- PHP
- Python
- javascript
- Java
- C#
- TypeScript
- Go
SET profiling=1;
SELECT id FROM forum WHERE MATCH('@title way* @content hey') LIMIT 1;
SHOW PLAN;POST /search
{
"table": "forum",
"query": {"query_string": "@title way* @content hey"},
"_source": { "excludes":["*"] },
"limit": 1,
"profile":true
}$result = $index->search('@title way* @content hey')->setSource(['excludes'=>['*']])->setLimit(1)->profile()->get();
print_r($result->getProfile());
searchApi.search({"table":"forum","query":{"query_string":"@title way* @content hey"},"_source":{"excludes":["*"]},"limit":1,"profile":true})res = await searchApi.search({"table":"forum","query":{"query_string":"@title way* @content hey"},"_source":{"excludes":["*"]},"limit":1,"profile":true});
query = new HashMap<String,Object>();
query.put("query_string","@title way* @content hey");
searchRequest = new SearchRequest();
searchRequest.setIndex("forum");
searchRequest.setQuery(query);
searchRequest.setProfile(true);
searchRequest.setLimit(1);
searchRequest.setSort(new ArrayList<String>(){{
add("*");
}});
searchResponse = searchApi.search(searchRequest);object query = new { query_string="@title way* @content hey" };
var searchRequest = new SearchRequest("forum", query);
searchRequest.Profile = true;
searchRequest.Limit = 1;
searchRequest.Sort = new List<Object> { "*" };
var searchResponse = searchApi.Search(searchRequest);res = await searchApi.search({
index: 'test',
query: { query_string: '@content 1'},
_source: { excludes: ["*"] },
limit:1,
profile":true
});searchRequest := manticoresearch.NewSearchRequest("test")
query := map[string]interface{} {"query_string": "1*"}
source := map[string]interface{} { "excludes": []string {"*"} }
searchRequest.SetQuery(query)
searchRequest.SetSource(source)
searchReq.SetLimit(1)
searchReq.SetProfile(true)
res, _, _ := apiClient.SearchAPI.Search(context.Background()).SearchRequest(*searchRequest).Execute()Query OK, 0 rows affected (0.00 sec)
+--------+
| id |
+--------+
| 711651 |
+--------+
1 row in set (0.04 sec)
+------------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| Variable | Value |
+------------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| transformed_tree | AND(
OR(
OR(
AND(fields=(title), KEYWORD(wayne, querypos=1, expanded)),
OR(
AND(fields=(title), KEYWORD(ways, querypos=1, expanded)),
AND(fields=(title), KEYWORD(wayyy, querypos=1, expanded)))),
AND(fields=(title), KEYWORD(way, querypos=1, expanded)),
OR(fields=(title), KEYWORD(way*, querypos=1, expanded))),
AND(fields=(content), KEYWORD(hey, querypos=2))) |
+------------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
1 row in set (0.00 sec){
"took":33,
"timed_out":false,
"hits":
{
"total":105,
"hits":
[
{
"_id": 711651,
"_score":2539,
"_source":{}
}
]
},
"profile":
{
"query":
{
"type":"AND",
"description":"AND( OR( OR( AND(fields=(title), KEYWORD(wayne, querypos=1, expanded)), OR( AND(fields=(title), KEYWORD(ways, querypos=1, expanded)), AND(fields=(title), KEYWORD(wayyy, querypos=1, expanded)))), AND(fields=(title), KEYWORD(way, querypos=1, expanded)), OR(fields=(title), KEYWORD(way*, querypos=1, expanded))), AND(fields=(content), KEYWORD(hey, querypos=2)))",
"children":
[
{
"type":"OR",
"description":"OR( OR( AND(fields=(title), KEYWORD(wayne, querypos=1, expanded)), OR( AND(fields=(title), KEYWORD(ways, querypos=1, expanded)), AND(fields=(title), KEYWORD(wayyy, querypos=1, expanded)))), AND(fields=(title), KEYWORD(way, querypos=1, expanded)), OR(fields=(title), KEYWORD(way*, querypos=1, expanded)))",
"children":
[
{
"type":"OR",
"description":"OR( AND(fields=(title), KEYWORD(wayne, querypos=1, expanded)), OR( AND(fields=(title), KEYWORD(ways, querypos=1, expanded)), AND(fields=(title), KEYWORD(wayyy, querypos=1, expanded))))",
"children":
[
{
"type":"AND",
"description":"AND(fields=(title), KEYWORD(wayne, querypos=1, expanded))",
"fields":["title"],
"max_field_pos":0,
"children":
[
{
"type":"KEYWORD",
"word":"wayne",
"querypos":1,
"expanded":true
}
]
},
{
"type":"OR",
"description":"OR( AND(fields=(title), KEYWORD(ways, querypos=1, expanded)), AND(fields=(title), KEYWORD(wayyy, querypos=1, expanded)))",
"children":
[
{
"type":"AND",
"description":"AND(fields=(title), KEYWORD(ways, querypos=1, expanded))",
"fields":["title"],
"max_field_pos":0,
"children":
[
{
"type":"KEYWORD",
"word":"ways",
"querypos":1,
"expanded":true
}
]
},
{
"type":"AND",
"description":"AND(fields=(title), KEYWORD(wayyy, querypos=1, expanded))",
"fields":["title"],
"max_field_pos":0,
"children":
[
{
"type":"KEYWORD",
"word":"wayyy",
"querypos":1,
"expanded":true
}
]
}
]
}
]
},
{
"type":"AND",
"description":"AND(fields=(title), KEYWORD(way, querypos=1, expanded))",
"fields":["title"],
"max_field_pos":0,
"children":
[
{
"type":"KEYWORD",
"word":"way",
"querypos":1,
"expanded":true
}
]
},
{
"type":"OR",
"description":"OR(fields=(title), KEYWORD(way*, querypos=1, expanded))",
"fields":["title"],
"max_field_pos":0,
"children":
[
{
"type":"KEYWORD",
"word":"way*",
"querypos":1,
"expanded":true
}
]
}
]
},
{
"type":"AND",
"description":"AND(fields=(content), KEYWORD(hey, querypos=2))",
"fields":["content"],
"max_field_pos":0,
"children":
[
{
"type":"KEYWORD",
"word":"hey",
"querypos":2
}
]
}
]
}
}
}Array
(
[query] => Array
(
[type] => AND
[description] => AND( OR( OR( AND(fields=(title), KEYWORD(wayne, querypos=1, expanded)), OR( AND(fields=(title), KEYWORD(ways, querypos=1, expanded)), AND(fields=(title), KEYWORD(wayyy, querypos=1, expanded)))), AND(fields=(title), KEYWORD(way, querypos=1, expanded)), OR(fields=(title), KEYWORD(way*, querypos=1, expanded))), AND(fields=(content), KEYWORD(hey, querypos=2)))
[children] => Array
(
[0] => Array
(
[type] => OR
[description] => OR( OR( AND(fields=(title), KEYWORD(wayne, querypos=1, expanded)), OR( AND(fields=(title), KEYWORD(ways, querypos=1, expanded)), AND(fields=(title), KEYWORD(wayyy, querypos=1, expanded)))), AND(fields=(title), KEYWORD(way, querypos=1, expanded)), OR(fields=(title), KEYWORD(way*, querypos=1, expanded)))
[children] => Array
(
[0] => Array
(
[type] => OR
[description] => OR( AND(fields=(title), KEYWORD(wayne, querypos=1, expanded)), OR( AND(fields=(title), KEYWORD(ways, querypos=1, expanded)), AND(fields=(title), KEYWORD(wayyy, querypos=1, expanded))))
[children] => Array
(
[0] => Array
(
[type] => AND
[description] => AND(fields=(title), KEYWORD(wayne, querypos=1, expanded))
[fields] => Array
(
[0] => title
)
[max_field_pos] => 0
[children] => Array
(
[0] => Array
(
[type] => KEYWORD
[word] => wayne
[querypos] => 1
[expanded] => 1
)
)
)
[1] => Array
(
[type] => OR
[description] => OR( AND(fields=(title), KEYWORD(ways, querypos=1, expanded)), AND(fields=(title), KEYWORD(wayyy, querypos=1, expanded)))
[children] => Array
(
[0] => Array
(
[type] => AND
[description] => AND(fields=(title), KEYWORD(ways, querypos=1, expanded))
[fields] => Array
(
[0] => title
)
[max_field_pos] => 0
[children] => Array
(
[0] => Array
(
[type] => KEYWORD
[word] => ways
[querypos] => 1
[expanded] => 1
)
)
)
[1] => Array
(
[type] => AND
[description] => AND(fields=(title), KEYWORD(wayyy, querypos=1, expanded))
[fields] => Array
(
[0] => title
)
[max_field_pos] => 0
[children] => Array
(
[0] => Array
(
[type] => KEYWORD
[word] => wayyy
[querypos] => 1
[expanded] => 1
)
)
)
)
)
)
)
[1] => Array
(
[type] => AND
[description] => AND(fields=(title), KEYWORD(way, querypos=1, expanded))
[fields] => Array
(
[0] => title
)
[max_field_pos] => 0
[children] => Array
(
[0] => Array
(
[type] => KEYWORD
[word] => way
[querypos] => 1
[expanded] => 1
)
)
)
[2] => Array
(
[type] => OR
[description] => OR(fields=(title), KEYWORD(way*, querypos=1, expanded))
[fields] => Array
(
[0] => title
)
[max_field_pos] => 0
[children] => Array
(
[0] => Array
(
[type] => KEYWORD
[word] => way*
[querypos] => 1
[expanded] => 1
)
)
)
)
)
[1] => Array
(
[type] => AND
[description] => AND(fields=(content), KEYWORD(hey, querypos=2))
[fields] => Array
(
[0] => content
)
[max_field_pos] => 0
[children] => Array
(
[0] => Array
(
[type] => KEYWORD
[word] => hey
[querypos] => 2
)
)
)
)
)
)
{'hits': {'hits': [{u'_id': u'2811025403043381551',
u'_score': 2643,
u'_source': {}}],
'total': 1},
'profile': {u'query': {u'children': [{u'children': [{u'expanded': True,
u'querypos': 1,
u'type': u'KEYWORD',
u'word': u'way*'}],
u'description': u'AND(fields=(title), KEYWORD(way*, querypos=1, expanded))',
u'fields': [u'title'],
u'type': u'AND'},
{u'children': [{u'querypos': 2,
u'type': u'KEYWORD',
u'word': u'hey'}],
u'description': u'AND(fields=(content), KEYWORD(hey, querypos=2))',
u'fields': [u'content'],
u'type': u'AND'}],
u'description': u'AND( AND(fields=(title), KEYWORD(way*, querypos=1, expanded)), AND(fields=(content), KEYWORD(hey, querypos=2)))',
u'type': u'AND'}},
'timed_out': False,
'took': 0}
{"hits": {"hits": [{"_id": 2811025403043381551,
"_score": 2643,
"_source": {}}],
"total": 1},
"profile": {"query": {"children": [{"children": [{"expanded": True,
"querypos": 1,
"type": "KEYWORD",
"word": "way*"}],
"description": "AND(fields=(title), KEYWORD(way*, querypos=1, expanded))",
"fields": ["title"],
"type": "AND"},
{"children": [{"querypos": 2,
"type": "KEYWORD",
"word": "hey"}],
"description": "AND(fields=(content), KEYWORD(hey, querypos=2))",
"fields": ["content"],
"type": "AND"}],
"description": "AND( AND(fields=(title), KEYWORD(way*, querypos=1, expanded)), AND(fields=(content), KEYWORD(hey, querypos=2)))",
"type": "AND"}},
"timed_out": False,
"took": 0}class SearchResponse {
took: 18
timedOut: false
hits: class SearchResponseHits {
total: 1
hits: [{_id=2811025403043381551, _score=2643, _source={}}]
aggregations: null
}
profile: {query={type=AND, description=AND( AND(fields=(title), KEYWORD(way*, querypos=1, expanded)), AND(fields=(content), KEYWORD(hey, querypos=2))), children=[{type=AND, description=AND(fields=(title), KEYWORD(way*, querypos=1, expanded)), fields=[title], children=[{type=KEYWORD, word=way*, querypos=1, expanded=true}]}, {type=AND, description=AND(fields=(content), KEYWORD(hey, querypos=2)), fields=[content], children=[{type=KEYWORD, word=hey, querypos=2}]}]}}
}class SearchResponse {
took: 18
timedOut: false
hits: class SearchResponseHits {
total: 1
hits: [{_id=2811025403043381551, _score=2643, _source={}}]
aggregations: null
}
profile: {query={type=AND, description=AND( AND(fields=(title), KEYWORD(way*, querypos=1, expanded)), AND(fields=(content), KEYWORD(hey, querypos=2))), children=[{type=AND, description=AND(fields=(title), KEYWORD(way*, querypos=1, expanded)), fields=[title], children=[{type=KEYWORD, word=way*, querypos=1, expanded=true}]}, {type=AND, description=AND(fields=(content), KEYWORD(hey, querypos=2)), fields=[content], children=[{type=KEYWORD, word=hey, querypos=2}]}]}}
}{
"hits":
{
"hits":
[{
"_id": 1,
"_score": 1480,
"_source": {}
}],
"total": 1
},
"profile":
{
"query":
{
"children":
[{
"children":
[{
"expanded": True,
"querypos": 1,
"type": "KEYWORD",
"word": "1*"
}],
"description": "AND(fields=(content), KEYWORD(1*, querypos=1, expanded))",
"fields": ["content"],
"type": "AND"
}],
"description": "AND(fields=(content), KEYWORD(1*, querypos=1))",
"type": "AND"
}},
"timed_out": False,
"took": 0
}{
"hits":
{
"hits":
[{
"_id": 1,
"_score": 1480,
"_source": {}
}],
"total": 1
},
"profile":
{
"query":
{
"children":
[{
"children":
[{
"expanded": True,
"querypos": 1,
"type": "KEYWORD",
"word": "1*"
}],
"description": "AND(fields=(content), KEYWORD(1*, querypos=1, expanded))",
"fields": ["content"],
"type": "AND"
}],
"description": "AND(fields=(content), KEYWORD(1*, querypos=1))",
"type": "AND"
}},
"timed_out": False,
"took": 0
}The SQL statement EXPLAIN QUERY enables the display of the execution tree for a given full-text query without performing an actual search query on the table.
- SQL
EXPLAIN QUERY index_base '@title running @body dog'\G EXPLAIN QUERY index_base '@title running @body dog'\G
*************************** 1\. row ***************************
Variable: transformed_tree
Value: AND(
OR(
AND(fields=(title), KEYWORD(run, querypos=1, morphed)),
AND(fields=(title), KEYWORD(running, querypos=1, morphed))))
AND(fields=(body), KEYWORD(dog, querypos=2, morphed)))EXPLAIN QUERY ... option format=dot allows displaying the execution tree of a provided full-text query in a hierarchical format suitable for visualization by existing tools, such as https://dreampuf.github.io/GraphvizOnline:

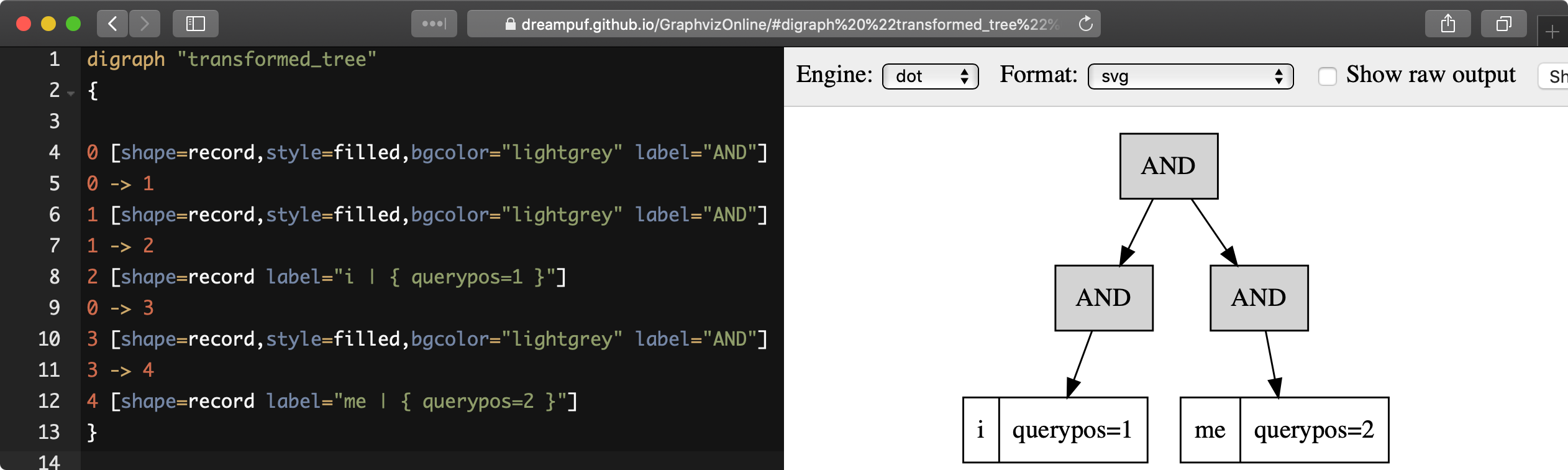

- SQL
EXPLAIN QUERY tbl 'i me' option format=dot\GEXPLAIN QUERY tbl 'i me' option format=dot\G
*************************** 1. row ***************************
Variable: transformed_tree
Value: digraph "transformed_tree"
{
0 [shape=record,style=filled,bgcolor="lightgrey" label="AND"]
0 -> 1
1 [shape=record,style=filled,bgcolor="lightgrey" label="AND"]
1 -> 2
2 [shape=record label="i | { querypos=1 }"]
0 -> 3
3 [shape=record,style=filled,bgcolor="lightgrey" label="AND"]
3 -> 4
4 [shape=record label="me | { querypos=2 }"]
}When using an expression ranker, it's possible to reveal the values of the calculated factors with the PACKEDFACTORS() function.
The function returns:
- The values of document-level factors (such as bm25, field_mask, doc_word_count)
- A list of each field that generated a hit (including lcs, hit_count, word_count, sum_idf, min_hit_pos, etc.)
- A list of each keyword from the query along with their tf and idf values
These values can be utilized to understand why certain documents receive lower or higher scores in a search or to refine the existing ranking expression.
- SQL
SELECT id, PACKEDFACTORS() FROM test1 WHERE MATCH('test one') OPTION ranker=expr('1')\G id: 1
packedfactors(): bm25=569, bm25a=0.617197, field_mask=2, doc_word_count=2,
field1=(lcs=1, hit_count=2, word_count=2, tf_idf=0.152356,
min_idf=-0.062982, max_idf=0.215338, sum_idf=0.152356, min_hit_pos=4,
min_best_span_pos=4, exact_hit=0, max_window_hits=1, min_gaps=2,
exact_order=1, lccs=1, wlccs=0.215338, atc=-0.003974),
word0=(tf=1, idf=-0.062982),
word1=(tf=1, idf=0.215338)
1 row in set (0.00 sec)Queries can be automatically optimized if OPTION boolean_simplify=1 is specified. Some transformations performed by this optimization include:
- Excess brackets:
((A | B) | C)becomes(A | B | C);((A B) C)becomes(A B C) - Excess AND NOT:
((A !N1) !N2)becomes(A !(N1 | N2)) - Common NOT:
((A !N) | (B !N))becomes((A | B) !N) - Common Compound NOT:
((A !(N AA)) | (B !(N BB)))becomes(((A | B) !N) | (A !AA) | (B !BB))if the cost of evaluating N is greater than the sum of evaluating A and B - Common subterm:
((A (N | AA)) | (B (N | BB)))becomes(((A | B) N) | (A AA) | (B BB))if the cost of evaluating N is greater than the sum of evaluating A and B - Common keywords:
(A | "A B"~N)becomesA;("A B" | "A B C")becomes"A B";("A B"~N | "A B C"~N)becomes("A B"~N) - Common phrase:
("X A B" | "Y A B")becomes("("X"|"Y") A B") - Common AND NOT:
((A !X) | (A !Y) | (A !Z))becomes(A !(X Y Z)) - Common OR NOT:
((A !(N | N1)) | (B !(N | N2)))becomes(( (A !N1) | (B !N2) ) !N)Note that optimizing queries consumes CPU time, so for simple queries or hand-optimized queries, you'll achieve better results with the defaultboolean_simplify=0value. Simplifications often benefit complex queries or algorithmically generated queries.
NOTE: This is an experimental functionality and should be used with caution. It is recommended to verify that a query returns the same documents with and without adding
OPTION boolean_simplify=1. While this optimization can simplify and improve the performance of complex or algorithmically generated queries, it also consumes additional CPU time. For simpler or manually optimized queries, the defaultboolean_simplify=0value might yield better results.
Queries like -dog, which could potentially include all documents from the collection are not allowed by default. To allow them, you must specify not_terms_only_allowed=1 either as a global setting or as a search option.
When you run a query via SQL over the MySQL protocol, you receive the requested columns as a result or an empty result set if nothing is found.
- SQL
SELECT * FROM tbl;+------+------+--------+
| id | age | name |
+------+------+--------+
| 1 | 25 | joe |
| 2 | 25 | mary |
| 3 | 33 | albert |
+------+------+--------+
3 rows in set (0.00 sec)Additionally, you can use the SHOW META call to see extra meta-information about the latest query.
- SQL
SELECT id,story_author,comment_author FROM hn_small WHERE story_author='joe' LIMIT 3; SHOW META;++--------+--------------+----------------+
| id | story_author | comment_author |
+--------+--------------+----------------+
| 152841 | joe | SwellJoe |
| 161323 | joe | samb |
| 163735 | joe | jsjenkins168 |
+--------+--------------+----------------+
3 rows in set (0.01 sec)
+----------------+-------+
| Variable_name | Value |
+----------------+-------+
| total | 3 |
| total_found | 20 |
| total_relation | gte |
| time | 0.010 |
+----------------+-------+
4 rows in set (0.00 sec)In some cases, such as when performing a faceted search, you may receive multiple result sets as a response to your SQL query.
- SQL
SELECT * FROM tbl WHERE MATCH('joe') FACET age;+------+------+
| id | age |
+------+------+
| 1 | 25 |
+------+------+
1 row in set (0.00 sec)
+------+----------+
| age | count(*) |
+------+----------+
| 25 | 1 |
+------+----------+
1 row in set (0.00 sec)In case of a warning, the result set will include a warning flag, and you can see the warning using SHOW WARNINGS.
- SQL
SELECT * from tbl where match('"joe"/3'); show warnings;+------+------+------+
| id | age | name |
+------+------+------+
| 1 | 25 | joe |
+------+------+------+
1 row in set, 1 warning (0.00 sec)
+---------+------+--------------------------------------------------------------------------------------------+
| Level | Code | Message |
+---------+------+--------------------------------------------------------------------------------------------+
| warning | 1000 | quorum threshold too high (words=1, thresh=3); replacing quorum operator with AND operator |
+---------+------+--------------------------------------------------------------------------------------------+
1 row in set (0.00 sec)If your query fails, you will receive an error:
- SQL
SELECT * from tbl where match('@surname joe');ERROR 1064 (42000): index idx: query error: no field 'surname' found in schemaVia the HTTP JSON interface, the query result is sent as a JSON document. Example:
{
"took":10,
"timed_out": false,
"hits":
{
"total": 2,
"hits":
[
{
"_id": 1,
"_score": 1,
"_source": { "gid": 11 }
},
{
"_id": 2,
"_score": 1,
"_source": { "gid": 12 }
}
]
}
}took: time in milliseconds it took to execute the searchtimed_out: whether the query timed out or nothits: search results, with the following properties:total: total number of matching documentshits: an array containing matches
The query result can also include query profile information. See Query profile.
Each match in the hits array has the following properties:
_id: match id_score: match weight, calculated by the ranker_source: an array containing the attributes of this match
By default, all attributes are returned in the _source array. You can use the _source property in the request payload to select the fields you want to include in the result set. Example:
{
"table":"test",
"_source":"attr*",
"query": { "match_all": {} }
}You can specify the attributes you want to include in the query result as a string ("_source": "attr*") or as an array of strings ("_source": [ "attr1", "attri*" ]"). Each entry can be an attribute name or a wildcard (*, % and ? symbols are supported).
You can also explicitly specify which attributes you want to include and which to exclude from the result set using the includes and excludes properties:
"_source":
{
"includes": [ "attr1", "attri*" ],
"excludes": [ "*desc*" ]
}An empty list of includes is interpreted as "include all attributes," while an empty list of excludes does not match anything. If an attribute matches both the includes and excludes, then the excludes win.
WHERE is an SQL clause that works for both full-text matching and additional filtering. The following operators are available:
- Comparison operators
<, >, <=, >=, =, <>, BETWEEN, IN, IS NULL - Boolean operators
AND, OR, NOT
MATCH('query') is supported and maps to a full-text query.
The {col_name | expr_alias} [NOT] IN @uservar condition syntax is supported. Refer to the SET syntax for a description of global user variables.
If you prefer the HTTP JSON interface, you can also apply filtering. It might seem more complex than SQL, but it is recommended for cases when you need to prepare a query programmatically, such as when a user fills out a form in your application.
Here's an example of several filters in a bool query.
This full-text query matches all documents containing product in any field. These documents must have a price greater than or equal to 500 (gte) and less than or equal to 1000 (lte). All of these documents must not have a revision less than 15 (lt).
- JSON
POST /search
{
"table": "test1",
"query": {
"bool": {
"must": [
{ "match" : { "_all" : "product" } },
{ "range": { "price": { "gte": 500, "lte": 1000 } } }
],
"must_not": {
"range": { "revision": { "lt": 15 } }
}
}
}
}The bool query matches documents based on boolean combinations of other queries and/or filters. Queries and filters must be specified in must, should, or must_not sections and can be nested.
- JSON
POST /search
{
"table":"test1",
"query": {
"bool": {
"must": [
{ "match": {"_all":"keyword"} },
{ "range": { "revision": { "gte": 14 } } }
]
}
}
}Queries and filters specified in the must section are required to match the documents. If multiple fulltext queries or filters are specified, all of them must match. This is the equivalent of AND queries in SQL. Note that if you want to match against an array (multi-value attribute), you can specify the attribute multiple times. The result will be positive only if all the queried values are found in the array, e.g.:
"must": [
{"equals" : { "product_codes": 5 }},
{"equals" : { "product_codes": 6 }}
]Note also, it may be better in terms of performance to use:
{"in" : { "all(product_codes)": [5,6] }}(see details below).
Queries and filters specified in the should section should match the documents. If some queries are specified in must or must_not, should queries are ignored. On the other hand, if there are no queries other than should, then at least one of these queries must match a document for it to match the bool query. This is the equivalent of OR queries. Note, if you want to match against an array (multi-value attribute) you can specify the attribute multiple times, e.g.:
"should": [
{"equals" : { "product_codes": 7 }},
{"equals" : { "product_codes": 8 }}
]Note also, it may be better in terms of performance to use:
{"in" : { "any(product_codes)": [7,8] }}(see details below).
Queries and filters specified in the must_not section must not match the documents. If several queries are specified under must_not, the document matches if none of them match.
- JSON
POST /search
{
"table":"t",
"query": {
"bool": {
"should": [
{
"equals": {
"b": 1
}
},
{
"equals": {
"b": 3
}
}
],
"must": [
{
"equals": {
"a": 1
}
}
],
"must_not": {
"equals": {
"b": 2
}
}
}
}
}A bool query can be nested inside another bool so you can make more complex queries. To make a nested boolean query just use another bool instead of must, should or must_not. Here is how this query:
a = 2 and (a = 10 or b = 0)should be presented in JSON.
- JSON
a = 2 and (a = 10 or b = 0)
POST /search
{
"table":"t",
"query": {
"bool": {
"must": [
{
"equals": {
"a": 2
}
},
{
"bool": {
"should": [
{
"equals": {
"a": 10
}
},
{
"equals": {
"b": 0
}
}
]
}
}
]
}
}
}More complex query:
(a = 1 and b = 1) or (a = 10 and b = 2) or (b = 0)- JSON
(a = 1 and b = 1) or (a = 10 and b = 2) or (b = 0)
POST /search
{
"table":"t",
"query": {
"bool": {
"should": [
{
"bool": {
"must": [
{
"equals": {
"a": 1
}
},
{
"equals": {
"b": 1
}
}
]
}
},
{
"bool": {
"must": [
{
"equals": {
"a": 10
}
},
{
"equals": {
"b": 2
}
}
]
}
},
{
"bool": {
"must": [
{
"equals": {
"b": 0
}
}
]
}
}
]
}
}
}Queries in SQL format (query_string) can also be used in bool queries.
- JSON
POST /search
{
"table": "test1",
"query": {
"bool": {
"must": [
{ "query_string" : "product" },
{ "query_string" : "good" }
]
}
}
}Equality filters are the simplest filters that work with integer, float and string attributes.
- JSON
POST /search
{
"table":"test1",
"query": {
"equals": { "price": 500 }
}
}Filter equals can be applied to a multi-value attribute and you can use:
any()which will be positive if the attribute has at least one value which equals to the queried value;all()which will be positive if the attribute has a single value and it equals to the queried value
- JSON
POST /search
{
"table":"test1",
"query": {
"equals": { "any(price)": 100 }
}
}Set filters check if attribute value is equal to any of the values in the specified set.
Set filters support integer, string and multi-value attributes.
- JSON
POST /search
{
"table":"test1",
"query": {
"in": {
"price": [1,10,100]
}
}
}When applied to a multi-value attribute you can use:
any()(equivalent to no function) which will be positive if there's at least one match between the attribute values and the queried values;all()which will be positive if all the attribute values are in the queried set
- JSON
POST /search
{
"table":"test1",
"query": {
"in": {
"all(price)": [1,10]
}
}
}Range filters match documents that have attribute values within a specified range.
Range filters support the following properties:
gte: greater than or equal togt: greater thanlte: less than or equal tolt: less than
- JSON
POST /search
{
"table":"test1",
"query": {
"range": {
"price": {
"gte": 500,
"lte": 1000
}
}
}
}geo_distance filters are used to filter the documents that are within a specific distance from a geo location.
Specifies the pin location, in degrees. Distances are calculated from this point.
Specifies the attributes that contain latitude and longitude.
Specifies distance calculation function. Can be either adaptive or haversine. adaptive is faster and more precise, for more details see GEODIST(). Optional, defaults to adaptive.
Specifies the maximum distance from the pin locations. All documents within this distance match. The distance can be specified in various units. If no unit is specified, the distance is assumed to be in meters. Here is a list of supported distance units:
- Meter:
mormeters - Kilometer:
kmorkilometers - Centimeter:
cmorcentimeters - Millimeter:
mmormillimeters - Mile:
miormiles - Yard:
ydoryards - Feet:
ftorfeet - Inch:
inorinch - Nautical mile:
NM,nmiornauticalmiles
location_anchor and location_source properties accept the following latitude/longitude formats:
- an object with lat and lon keys:
{ "lat": "attr_lat", "lon": "attr_lon" } - a string of the following structure:
"attr_lat, attr_lon" - an array with the latitude and longitude in the following order:
[attr_lon, attr_lat]
Latitude and longitude are specified in degrees.
- Basic example
- Advanced example
POST /search
{
"table":"test",
"query": {
"geo_distance": {
"location_anchor": {"lat":49, "lon":15},
"location_source": {"attr_lat, attr_lon"},
"distance_type": "adaptive",
"distance":"100 km"
}
}
}geo_distance can be used as a filter in bool queries along with matches or other attribute filters.
POST /search
{
"table": "geodemo",
"query": {
"bool": {
"must": [
{
"match": {
"*": "station"
}
},
{
"equals": {
"state_code": "ENG"
}
},
{
"geo_distance": {
"distance_type": "adaptive",
"location_anchor": {
"lat": 52.396,
"lon": -1.774
},
"location_source": "latitude_deg,longitude_deg",
"distance": "10000 m"
}
}
]
}
}
}
