Faceted search

Faceted search is as crucial to a modern search application as autocomplete, spell correction, and search keywords highlighting, especially in e-commerce products.

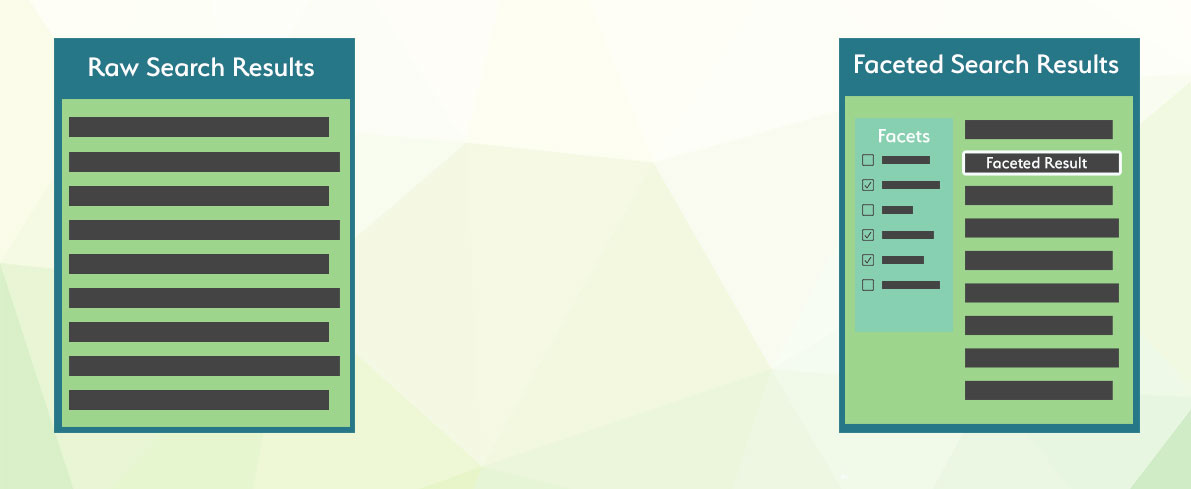

Faceted search

Faceted search comes in handy when dealing with large quantities of data and various interconnected properties, such as size, color, manufacturer, or other factors. When querying vast amounts of data, search results frequently include numerous entries that don't match the user's expectations. Faceted search enables the end user to explicitly define the criteria they want their search results to satisfy.

In Manticore Search, there's an optimization that maintains the result set of the original query and reuses it for each facet calculation. Since the aggregations are applied to an already calculated subset of documents, they're fast, and the total execution time can often be only slightly longer than the initial query. Facets can be added to any query, and the facet can be any attribute or expression. A facet result includes the facet values and the facet counts. Facets can be accessed using the SQL SELECT statement by declaring them at the very end of the query.

Aggregations

SQL

The facet values can originate from an attribute, a JSON property within a JSON attribute, or an expression. Facet values can also be aliased, but the alias must be unique across all result sets (main query result set and other facets result sets). The facet value is derived from the aggregated attribute/expression, but it can also come from another attribute/expression.

FACET {expr_list} [BY {expr_list} ] [DISTINCT {field_name}] [ORDER BY {expr | FACET()} {ASC | DESC}] [LIMIT [offset,] count]

Multiple facet declarations must be separated by a whitespace.

HTTP JSON

Facets can be defined in the aggs node:

     "aggs" :
     {
        "group name" :
         {
            "terms" :
             {
              "field":"attribute name",
              "size": 1000
             }
             "sort": [ {"attribute name": { "order":"asc" }} ]
         }
     }

where:

  • group name is an alias assigned to the aggregation
  • field value must contain the name of the attribute or expression being faceted
  • optional size specifies the maximum number of buckets to include in the result. When not specified, it inherits the main query's limit. More details can be found in the Size of facet result section.
  • optional sort specifies an array of attributes and/or additional properties using the same syntax as the "sort" parameter in the main query.

The result set will contain an aggregations node with the returned facets, where key is the aggregated value and doc_count is the aggregation count.

    "aggregations": {
        "group name": {
        "buckets": [
            {
                "key": 10,
                "doc_count": 1019
            },
            {
                "key": 9,
                "doc_count": 954
            },
            {
                "key": 8,
                "doc_count": 1021
            },
            {
                "key": 7,
                "doc_count": 1011
            },
            {
                "key": 6,
                "doc_count": 997
            }
            ]
        }
    }
‹›
  • SQL
  • JSON
  • PHP
  • Python
  • Javascript
  • Java
  • C#
  • TypeScript
  • Go
📋
SELECT *, price AS aprice FROM facetdemo LIMIT 10 FACET price LIMIT 10 FACET brand_id LIMIT 5;
‹›
Response
+------+-------+----------+---------------------+------------+-------------+---------------------------------------+------------+--------+
| id   | price | brand_id | title               | brand_name | property    | j                                     | categories | aprice |
+------+-------+----------+---------------------+------------+-------------+---------------------------------------+------------+--------+
|    1 |   306 |        1 | Product Ten Three   | Brand One  | Six_Ten     | {"prop1":66,"prop2":91,"prop3":"One"} | 10,11      |    306 |
|    2 |   400 |       10 | Product Three One   | Brand Ten  | Four_Three  | {"prop1":69,"prop2":19,"prop3":"One"} | 13,14      |    400 |
...
|    9 |   560 |        6 | Product Two Five    | Brand Six  | Eight_Two   | {"prop1":90,"prop2":84,"prop3":"One"} | 13,14      |    560 |
|   10 |   229 |        9 | Product Three Eight | Brand Nine | Seven_Three | {"prop1":84,"prop2":39,"prop3":"One"} | 12,13      |    229 |
+------+-------+----------+---------------------+------------+-------------+---------------------------------------+------------+--------+
10 rows in set (0.00 sec)
+-------+----------+
| price | count(*) |
+-------+----------+
|   306 |        7 |
|   400 |       13 |
...
|   229 |        9 |
|   595 |       10 |
+-------+----------+
10 rows in set (0.00 sec)
+----------+----------+
| brand_id | count(*) |
+----------+----------+
|        1 |     1013 |
|       10 |      998 |
|        5 |     1007 |
|        8 |     1033 |
|        7 |      965 |
+----------+----------+
5 rows in set (0.00 sec)

Faceting by aggregation over another attribute

Data can be faceted by aggregating another attribute or expression. For example if the documents contain both the brand id and name, we can return in facet the brand names, but aggregate the brand ids. This can be done by using FACET {expr1} BY {expr2}

‹›
  • SQL
SQL
📋
SELECT * FROM facetdemo FACET brand_name by brand_id;
‹›
Response
+------+-------+----------+---------------------+-------------+-------------+---------------------------------------+------------+
| id   | price | brand_id | title               | brand_name  | property    | j                                     | categories |
+------+-------+----------+---------------------+-------------+-------------+---------------------------------------+------------+
|    1 |   306 |        1 | Product Ten Three   | Brand One   | Six_Ten     | {"prop1":66,"prop2":91,"prop3":"One"} | 10,11      |
|    2 |   400 |       10 | Product Three One   | Brand Ten   | Four_Three  | {"prop1":69,"prop2":19,"prop3":"One"} | 13,14      |
....
|   19 |   855 |        1 | Product Seven Two   | Brand One   | Eight_Seven | {"prop1":63,"prop2":78,"prop3":"One"} | 10,11,12   |
|   20 |    31 |        9 | Product Four One    | Brand Nine  | Ten_Four    | {"prop1":79,"prop2":42,"prop3":"One"} | 12,13,14   |
+------+-------+----------+---------------------+-------------+-------------+---------------------------------------+------------+
20 rows in set (0.00 sec)
+-------------+----------+
| brand_name  | count(*) |
+-------------+----------+
| Brand One   |     1013 |
| Brand Ten   |      998 |
| Brand Five  |     1007 |
| Brand Nine  |      944 |
| Brand Two   |      990 |
| Brand Six   |     1039 |
| Brand Three |     1016 |
| Brand Four  |      994 |
| Brand Eight |     1033 |
| Brand Seven |      965 |
+-------------+----------+
10 rows in set (0.00 sec)

Faceting without duplicates

If you need to remove duplicates from the buckets returned by FACET, you can use DISTINCT field_name, where field_name is the field by which you want to perform deduplication. It can also be id (which is the default) if you make a FACET query against a distributed table and are not sure whether you have unique ids in the tables (the tables should be local and have the same schema).

If you have multiple FACET declarations in your query, field_name should be the same in all of them.

DISTINCT returns an additional column count(distinct ...) before the column count(*), allowing you to obtain both results without needing to make another query.

‹›
  • SQL
  • JSON
📋
SELECT brand_name, property FROM facetdemo FACET brand_name distinct property;
‹›
Response
+-------------+----------+
| brand_name  | property |
+-------------+----------+
| Brand Nine  | Four     |
| Brand Ten   | Four     |
| Brand One   | Five     |
| Brand Seven | Nine     |
| Brand Seven | Seven    |
| Brand Three | Seven    |
| Brand Nine  | Five     |
| Brand Three | Eight    |
| Brand Two   | Eight    |
| Brand Six   | Eight    |
| Brand Ten   | Four     |
| Brand Ten   | Two      |
| Brand Four  | Ten      |
| Brand One   | Nine     |
| Brand Four  | Eight    |
| Brand Nine  | Seven    |
| Brand Four  | Five     |
| Brand Three | Four     |
| Brand Four  | Two      |
| Brand Four  | Eight    |
+-------------+----------+
20 rows in set (0.00 sec)

+-------------+--------------------------+----------+
| brand_name  | count(distinct property) | count(*) |
+-------------+--------------------------+----------+
| Brand Nine  |                        3 |        3 |
| Brand Ten   |                        2 |        3 |
| Brand One   |                        2 |        2 |
| Brand Seven |                        2 |        2 |
| Brand Three |                        3 |        3 |
| Brand Two   |                        1 |        1 |
| Brand Six   |                        1 |        1 |
| Brand Four  |                        4 |        5 |
+-------------+--------------------------+----------+
8 rows in set (0.00 sec)

Facet over expressions

Facets can aggregate over expressions. A classic example is the segmentation of prices by specific ranges:

‹›
  • SQL
  • JSON
  • PHP
  • Python
  • Javascript
  • Java
  • C#
  • TypeScript
  • Go
📋
SELECT * FROM facetdemo FACET INTERVAL(price,200,400,600,800) AS price_range ;
‹›
Response
+------+-------+----------+---------------------+-------------+-------------+---------------------------------------+------------+-------------+
| id   | price | brand_id | title               | brand_name  | property    | j                                     | categories | price_range |
+------+-------+----------+---------------------+-------------+-------------+---------------------------------------+------------+-------------+
|    1 |   306 |        1 | Product Ten Three   | Brand One   | Six_Ten     | {"prop1":66,"prop2":91,"prop3":"One"} | 10,11      |           1 |
...
+------+-------+----------+---------------------+-------------+-------------+---------------------------------------+------------+-------------+
20 rows in set (0.00 sec)

+-------------+----------+
| price_range | count(*) |
+-------------+----------+
|           0 |     1885 |
|           3 |     1973 |
|           4 |     2100 |
|           2 |     1999 |
|           1 |     2043 |
+-------------+----------+
5 rows in set (0.01 sec)

Facet over multi-level grouping

Facets can aggregate over multi-level grouping, with the result set being the same as if the query performed a multi-level grouping:

‹›
  • SQL
SQL
📋
SELECT *,INTERVAL(price,200,400,600,800) AS price_range FROM facetdemo
FACET price_range AS price_range,brand_name ORDER BY brand_name asc;
‹›
Response
+------+-------+----------+---------------------+-------------+-------------+---------------------------------------+------------+-------------+
| id   | price | brand_id | title               | brand_name  | property    | j                                     | categories | price_range |
+------+-------+----------+---------------------+-------------+-------------+---------------------------------------+------------+-------------+
|    1 |   306 |        1 | Product Ten Three   | Brand One   | Six_Ten     | {"prop1":66,"prop2":91,"prop3":"One"} | 10,11      |           1 |
...
+------+-------+----------+---------------------+-------------+-------------+---------------------------------------+------------+-------------+
20 rows in set (0.00 sec)

+--------------+-------------+----------+
| fprice_range | brand_name  | count(*) |
+--------------+-------------+----------+
|            1 | Brand Eight |      197 |
|            4 | Brand Eight |      235 |
|            3 | Brand Eight |      203 |
|            2 | Brand Eight |      201 |
|            0 | Brand Eight |      197 |
|            4 | Brand Five  |      230 |
|            2 | Brand Five  |      197 |
|            1 | Brand Five  |      204 |
|            3 | Brand Five  |      193 |
|            0 | Brand Five  |      183 |
|            1 | Brand Four  |      195 |
...

Facet over histogram values

Facets can aggregate over histogram values by constructing fixed-size buckets over the values. The key function is:

key_of_the_bucket = interval + offset * floor ( ( value - offset ) / interval )

The histogram argument interval must be positive, and the histogram argument offset must be positive and less than interval. By default, the buckets are returned as an array. The histogram argument keyed makes the response a dictionary with the bucket keys.

‹›
  • SQL
  • JSON
  • JSON 2
📋
SELECT COUNT(*), HISTOGRAM(price, {hist_interval=100}) as price_range FROM facets GROUP BY price_range ORDER BY price_range ASC;
‹›
Response
+----------+-------------+
| count(*) | price_range |
+----------+-------------+
|        5 |           0 |
|        5 |         100 |
|        1 |         300 |
|        4 |         400 |
|        1 |         500 |
|        3 |         700 |
|        1 |         900 |
+----------+-------------+

Facet over histogram date values

Facets can aggregate over histogram date values, which is similar to the normal histogram. The difference is that the interval is specified using a date or time expression. Such expressions require special support because the intervals are not always of fixed length. Values are rounded to the closest bucket using the following key function:

key_of_the_bucket = interval * floor ( value / interval )

The histogram parameter calendar_interval understands months to have different amounts of days. Unlike calendar_interval, the fixed_interval parameter uses a fixed number of units and does not deviate, regardless of where it falls on the calendar. However fixed_interval cannot process units such as months because a month is not a fixed quantity. Attempting to specify units like weeks or months for fixed_interval will result in an error. The accepted intervals are described in the date_histogram expression. By default, the buckets are returned as an array. The histogram argument keyed makes the response a dictionary with the bucket keys.

‹›
  • SQL
  • JSON
📋
SELECT count(*), DATE_HISTOGRAM(tm, {calendar_interval='month'}) AS months FROM idx_dates GROUP BY months ORDER BY months ASC
‹›
Response
+----------+------------+
| count(*) | months     |
+----------+------------+
|      442 | 1485907200 |
|      744 | 1488326400 |
|      720 | 1491004800 |
|      230 | 1493596800 |
+----------+------------+

Facet over set of ranges

Facets can aggregate over a set of ranges. The values are checked against the bucket range, where each bucket includes the from value and excludes the to value from the range. Setting the keyed property to true makes the response a dictionary with the bucket keys rather than an array.

‹›
  • SQL
  • JSON
  • JSON 2
📋
SELECT COUNT(*), RANGE(price, {range_to=150},{range_from=150,range_to=300},{range_from=300}) price_range FROM facets GROUP BY price_range ORDER BY price_range ASC;
‹›
Response
+----------+-------------+
| count(*) | price_range |
+----------+-------------+
|        8 |           0 |
|        2 |           1 |
|       10 |           2 |
+----------+-------------+

Facet over set of date ranges

Facets can aggregate over a set of date ranges, which is similar to the normal range. The difference is that the from and to values can be expressed in Date math expressions. This aggregation includes the from value and excludes the to value for each range. Setting the keyed property to true makes the response a dictionary with the bucket keys rather than an array.

‹›
  • SQL
  • JSON
📋
SELECT COUNT(*), DATE_RANGE(tm, {range_to='2017||+2M/M'},{range_from='2017||+2M/M',range_to='2017||+5M/M'},{range_from='2017||+5M/M'}) AS points FROM idx_dates GROUP BY points ORDER BY points ASC;
‹›
Response
+----------+--------+
| count(*) | points |
+----------+--------+
|      442 |      0 |
|     1464 |      1 |
|      230 |      2 |
+----------+--------+

Ordering in facet result

Facets support the ORDER BY clause just like a standard query. Each facet can have its own ordering, and the facet ordering doesn't affect the main result set's ordering, which is determined by the main query's ORDER BY. Sorting can be done on attribute name, count (using COUNT(*), COUNT(DISTINCT attribute_name)), or the special FACET() function, which provides the aggregated data values. By default, a query with ORDER BY COUNT(*) will sort in descending order.

‹›
  • SQL
  • JSON
📋
SELECT * FROM facetdemo
FACET brand_name BY brand_id ORDER BY FACET() ASC
FACET brand_name BY brand_id ORDER BY brand_name ASC
FACET brand_name BY brand_id order BY COUNT(*) DESC;
FACET brand_name BY brand_id order BY COUNT(*);
‹›
Response
+------+-------+----------+---------------------+-------------+-------------+---------------------------------------+------------+
| id   | price | brand_id | title               | brand_name  | property    | j                                     | categories |
+------+-------+----------+---------------------+-------------+-------------+---------------------------------------+------------+
|    1 |   306 |        1 | Product Ten Three   | Brand One   | Six_Ten     | {"prop1":66,"prop2":91,"prop3":"One"} | 10,11      |
...
|   20 |    31 |        9 | Product Four One    | Brand Nine  | Ten_Four    | {"prop1":79,"prop2":42,"prop3":"One"} | 12,13,14   |
+------+-------+----------+---------------------+-------------+-------------+---------------------------------------+------------+
20 rows in set (0.01 sec)

+-------------+----------+
| brand_name  | count(*) |
+-------------+----------+
| Brand One   |     1013 |
| Brand Two   |      990 |
| Brand Three |     1016 |
| Brand Four  |      994 |
| Brand Five  |     1007 |
| Brand Six   |     1039 |
| Brand Seven |      965 |
| Brand Eight |     1033 |
| Brand Nine  |      944 |
| Brand Ten   |      998 |
+-------------+----------+
10 rows in set (0.01 sec)

+-------------+----------+
| brand_name  | count(*) |
+-------------+----------+
| Brand Eight |     1033 |
| Brand Five  |     1007 |
| Brand Four  |      994 |
| Brand Nine  |      944 |
| Brand One   |     1013 |
| Brand Seven |      965 |
| Brand Six   |     1039 |
| Brand Ten   |      998 |
| Brand Three |     1016 |
| Brand Two   |      990 |
+-------------+----------+
10 rows in set (0.01 sec)

+-------------+----------+
| brand_name  | count(*) |
+-------------+----------+
| Brand Six   |     1039 |
| Brand Eight |     1033 |
| Brand Three |     1016 |
| Brand One   |     1013 |
| Brand Five  |     1007 |
| Brand Ten   |      998 |
| Brand Four  |      994 |
| Brand Two   |      990 |
| Brand Seven |      965 |
| Brand Nine  |      944 |
+-------------+----------+
10 rows in set (0.01 sec)

Size of facet result

By default, each facet result set is limited to 20 values. The number of facet values can be controlled with the LIMIT clause individually for each facet by providing either a number of values to return in the format LIMIT count or with an offset as LIMIT offset, count.

The maximum facet values that can be returned is limited by the query's max_matches setting. If you want to implement dynamic max_matches (limiting max_matches to offset + per page for better performance), it must be taken into account that a too low max_matches value can affect the number of facet values. In this case, a minimum max_matches value should be used that is sufficient to cover the number of facet values.

‹›
  • SQL
  • JSON
  • PHP
  • Python
  • Javascript
  • Java
  • C#
  • TypeScript
  • Go
📋
SELECT * FROM facetdemo
FACET brand_name BY brand_id ORDER BY FACET() ASC  LIMIT 0,1
FACET brand_name BY brand_id ORDER BY brand_name ASC LIMIT 2,4
FACET brand_name BY brand_id order BY COUNT(*) DESC LIMIT 4;
‹›
Response
+------+-------+----------+---------------------+-------------+-------------+---------------------------------------+------------+
| id   | price | brand_id | title               | brand_name  | property    | j                                     | categories |
+------+-------+----------+---------------------+-------------+-------------+---------------------------------------+------------+
|    1 |   306 |        1 | Product Ten Three   | Brand One   | Six_Ten     | {"prop1":66,"prop2":91,"prop3":"One"} | 10,11      |
...
|   20 |    31 |        9 | Product Four One    | Brand Nine  | Ten_Four    | {"prop1":79,"prop2":42,"prop3":"One"} | 12,13,14   |
+------+-------+----------+---------------------+-------------+-------------+---------------------------------------+------------+
20 rows in set (0.01 sec)

+-------------+----------+
| brand_name  | count(*) |
+-------------+----------+
| Brand One   |     1013 |
+-------------+----------+
1 rows in set (0.01 sec)

+-------------+----------+
| brand_name  | count(*) |
+-------------+----------+
| Brand Four  |      994 |
| Brand Nine  |      944 |
| Brand One   |     1013 |
| Brand Seven |      965 |
+-------------+----------+
4 rows in set (0.01 sec)

+-------------+----------+
| brand_name  | count(*) |
+-------------+----------+
| Brand Six   |     1039 |
| Brand Eight |     1033 |
| Brand Three |     1016 |
+-------------+----------+
3 rows in set (0.01 sec)

Returned result set

When using SQL, a search with facets returns multiple result sets. The MySQL client/library/connector used must support multiple result sets in order to access the facet result sets.

Performance

Internally, the FACET is a shorthand for executing a multi-query where the first query contains the main search query and the rest of the queries in the batch have each a clustering. As in the case of multi-query, the common query optimization can kick in for a faceted search, meaning the search query is executed only once, and the facets operate on the search query result, with each facet adding only a fraction of time to the total query time.

To check if the faceted search ran in an optimized mode, you can look in the query log, where all logged queries will contain an xN string, where N is the number of queries that ran in the optimized group. Alternatively, you can check the output of the SHOW META statement, which will display a multiplier metric:

‹›
  • SQL
SQL
📋
SELECT * FROM facetdemo FACET brand_id FACET price FACET categories;
SHOW META LIKE 'multiplier';
‹›
Response
+------+-------+----------+---------------------+-------------+-------------+---------------------------------------+------------+
| id   | price | brand_id | title               | brand_name  | property    | j                                     | categories |
+------+-------+----------+---------------------+-------------+-------------+---------------------------------------+------------+
|    1 |   306 |        1 | Product Ten Three   | Brand One   | Six_Ten     | {"prop1":66,"prop2":91,"prop3":"One"} | 10,11      |
...

+----------+----------+
| brand_id | count(*) |
+----------+----------+
|        1 |     1013 |
...

+-------+----------+
| price | count(*) |
+-------+----------+
|   306 |        7 |
...

+------------+----------+
| categories | count(*) |
+------------+----------+
|         10 |     2436 |
...

+---------------+-------+
| Variable_name | Value |
+---------------+-------+
| multiplier    | 4     |
+---------------+-------+
1 row in set (0.00 sec)
